Kuhltek VW Distributor - Vintage Cast Iron Mechanical Advance 0231178010

Kuhltek VW Distributor - Vintage Cast Iron Mechanical Advance 0231178010

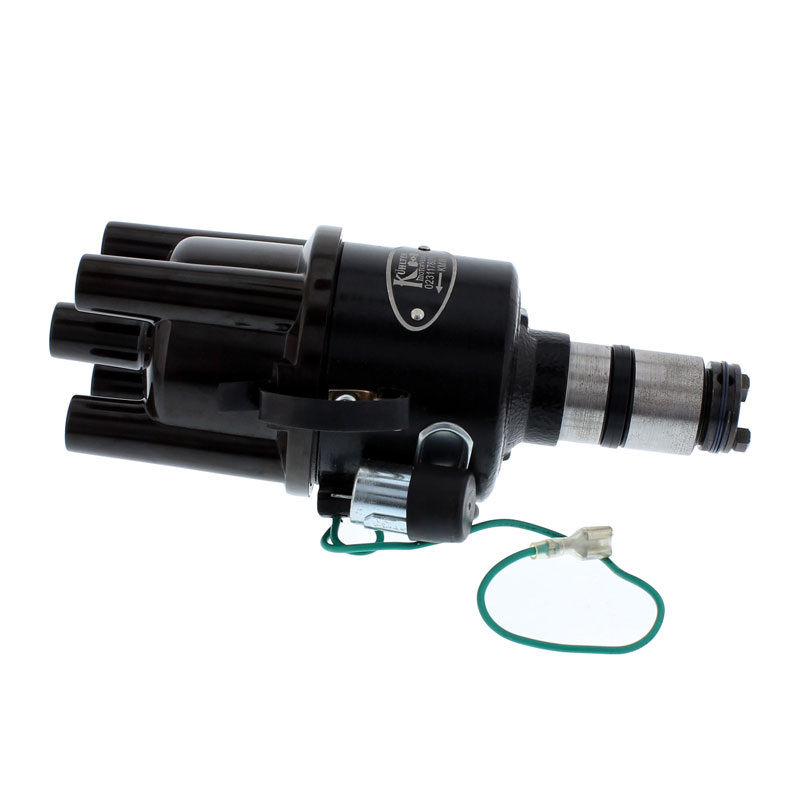

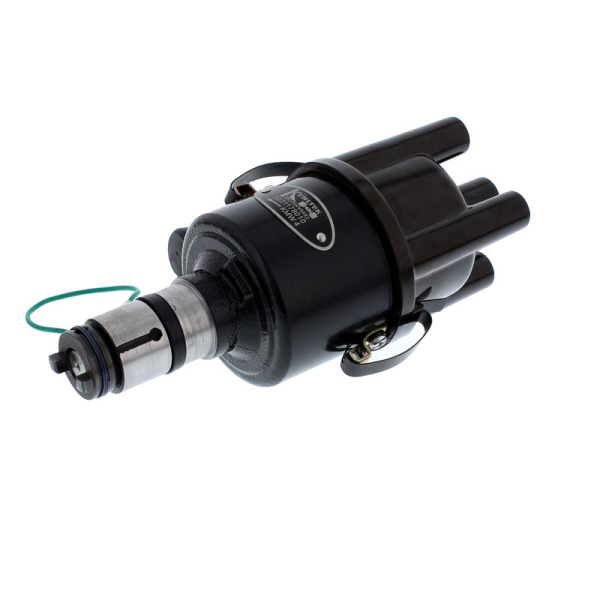

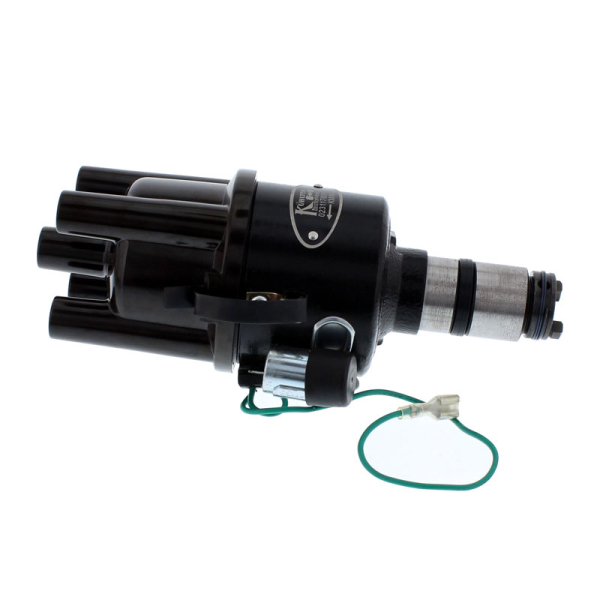

Kuhltek's new Vintage Cast Iron Mechanical Advance VW Distributor features an original style cast iron housing. The black painted distributor has a riveted badge and dark brown bakelite cap to complete the vintage look. Inside the stylish distributor, the mechanical advance curve matches the "009". Striped, hi-rev points are included (along with an additional set) along with the condensor, rotor, internal dust cap and o-ring seal. When it comes time to replace the ignition parts, the following Bosch replacement components can be used: 01052 points, 02086 condensor, 04033 rotor. The distributor cap is a Kuhltek specific part.

If your distributor only has one (most commonly green) wire, it has points and a condenser. Connect the wire from the condenser to the negative side of the coil.

If your distributor only has two wires (most commonly a black and a red wire) it has an electronic ignition. Connect the black wire from the electronic ignition to the negative side of the coil. The red wire from the electronic ignition will connect to the positive side (“15” or “+“) of the coil. Most importantly - the coil will have other black wires on the positive side which are “key hot” wires. It may look odd, but hooking up the black wire from the electronic ignition with the other black wires on the positive side of the coil will fry the electronic points.
